SANUPS N11D-C
Standby UPS with 200% overload capacity and EDLC
Features
200% Overload Capacity―Twice the Rated Capacity
Delivers 200%(1) overload capacity, even during battery operation. Ideal for equipment with large power fluctuations,such as elevators, robots, and motor-driven machinery.
Ideal for Voltage Sag Protection
Equipped with EDLCs for rapid charging, the UPS provides effective protection against utility power voltage sags.
Designed to meet the voltage sag requirements specified in SEMI F47, the voltage sag immunity standard for semiconductor manufacturing equipment, supporting stable production line operation.
High Efficiency, Energy Efficient, and Low Noise
Achieves power conversion efficiency of up to 98.6%,(2) reducing power consumption and CO2 emissions while supporting the achievement of the SDGs. The product can reuse regenerative power,(3) further enhancing energy efficiency.
Low operating noise of approximately 30 dB(4) supports installation in noise-sensitive environments.
Flexible Product Lineup

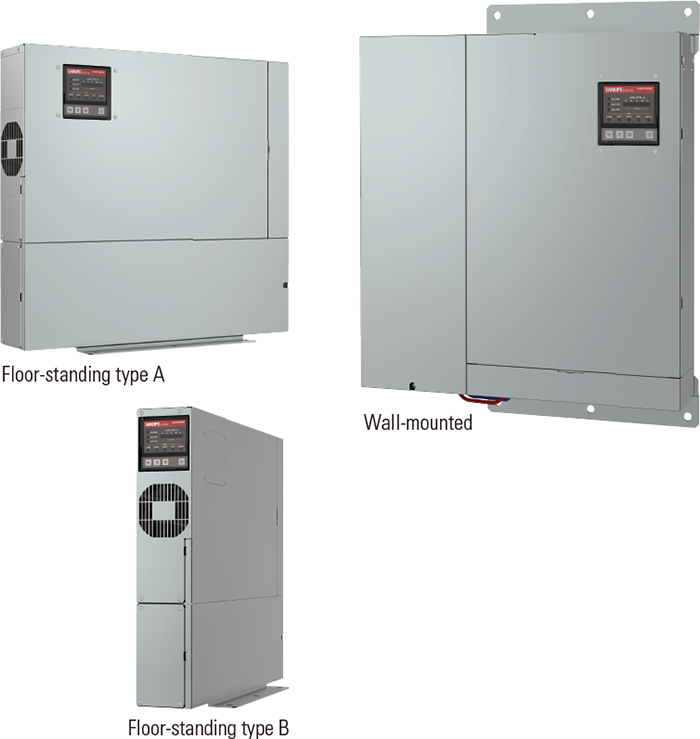

It can be easily mounted to EIA standard 19-inch racks. Rack mounting brackets and rack support rails are optional. Slim design supports wall mounting, enabling installation in control panels and other equipment.
| (1) | For 0.2 s |
| (2) | In a 3 kVA configuration |
| (3) | Regenerative power is generated when a rotating motor decelerates. |
| (4) | In normal operation at rated load level |

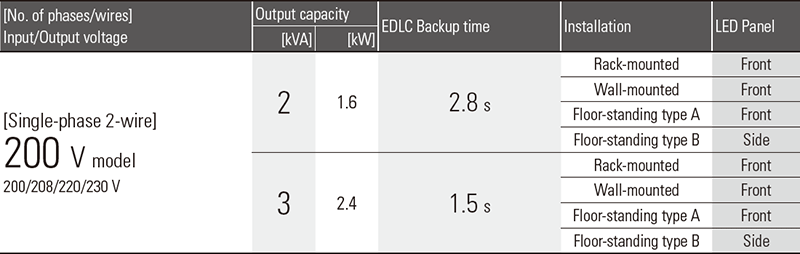

Lineup

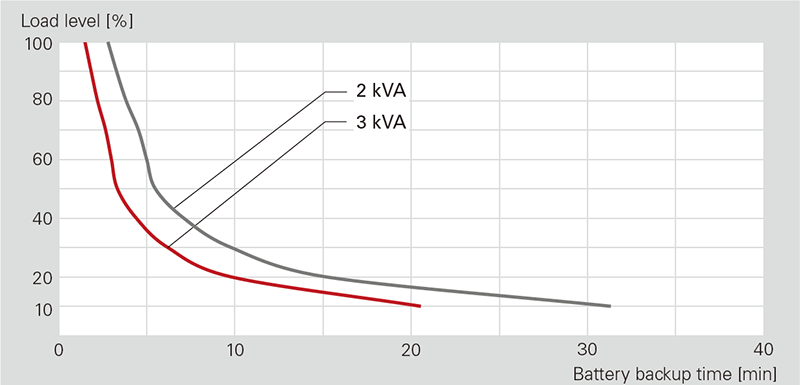

Load Level vs Backup Time
Note: Reference value at 25ºC ambient temperature and load power factor of 0.8, using new, fully charged batteries.
Applications
Commercial elevators, high speed doors, tower fan, cold storage, and semiconductor manufacturing equipment
