SANUPS N11D
Standby UPS with 200% overload capacity and lead-acid battery
Features
200% Overload Capacity―Twice the Rated Capacity
Delivers 200%(1) overload capacity, even during battery operation. Ideal for equipment with large power fluctuations, such as elevators, robots, and motor-driven machinery.
High Efficiency, Energy Savings, and Low Noise
Achieves power conversion efficiency of up to 98.6%,(2) reducing power consumption and CO2 emissions while supporting the achievement of the SDGs.
Low operating noise of approximately 30 dB(3) supports installation in noise-sensitive environments.
Flexible Product Lineup
Slim design supports wall mounting, enabling installation in control panels and other equipment. Two floor-standing installation options are also available to suit various installation conditions.
The battery unit can be installed separately from the UPS unit, providing greater flexibility for a wide range of applications and installation layouts.
Installation examples
This UPS consists of a UPS unit and a battery unit. Battery units are available in different capacities and sizes depending on the required backup time. The order no. indicates the combination of UPS unit and battery unit(s).
| (1) | For 1 s |
| (2) | In a 3 kVA configuration |
| (3) | In normal operation at rated load level |

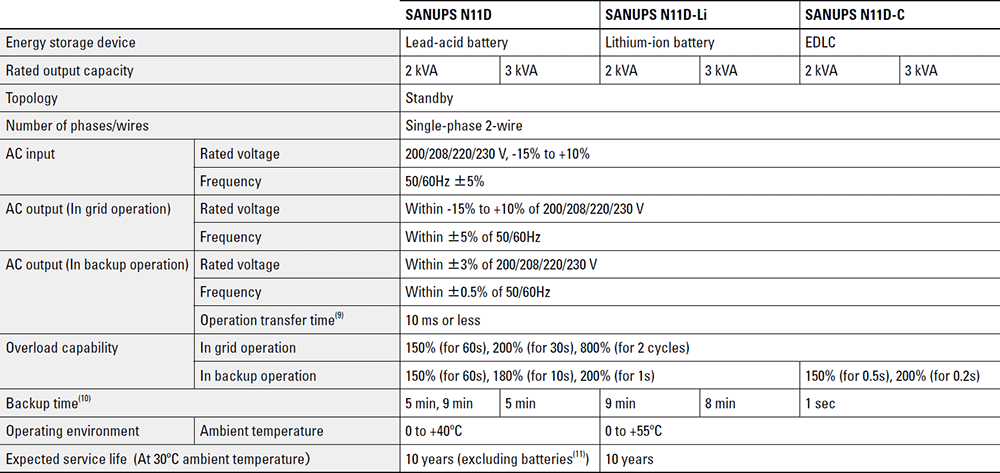

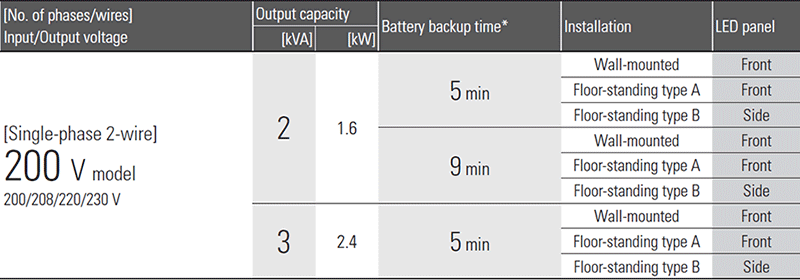

Lineup
Note: At a 25ºC ambient temperature and load power factor of 0.8, using new, fully charged batteries.

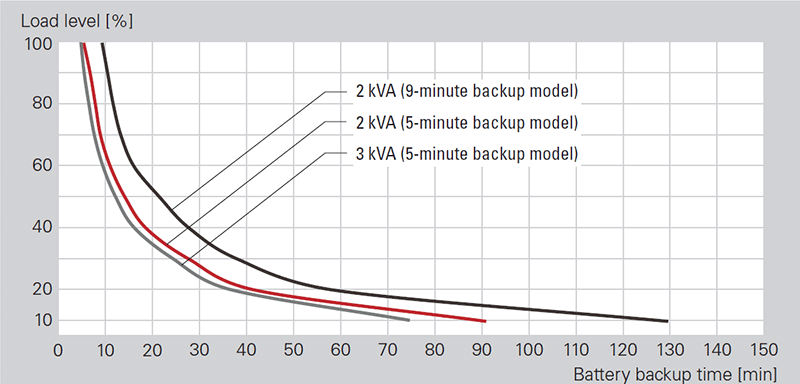

Load Level vs Backup Time
Note: Reference value at 25ºC ambient temperature and load power factor of 0.8, using new, fully charged batteries.
Applications
Commercial elevators, high speed doors, tower fan, cold storage, and semiconductor manufacturing equipment
